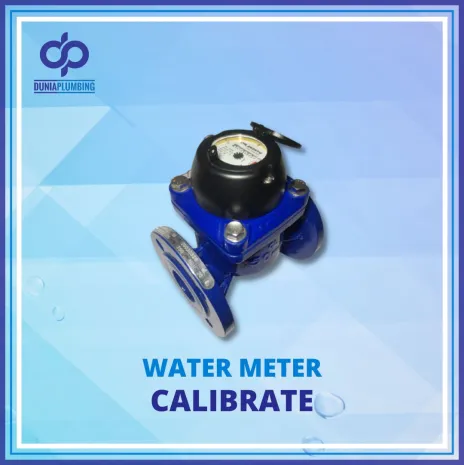

Brand = CALIBRATE
Type = LXXG (Air Limbah)
Size = 2 inch DN50
Length (L) = 200 mm
Height (H) = 261 mm
Connecting Flange
Outside Diameter (D1) = 165 mm
Connecting Flange
Bolt Circle Diameter (D2) = 125 mm
Connecting Flange
Connecting Bolts (n-M) = 4 – M16
Overload Flow (Q4) = 31.3 m³/h
Permanent Flow (Q3) = 25 m³/h
Q3/Q1 = 50
Transitional Flow (Q2) = 0.8 m³/h
Min. Flow (Q1) = 0.5 m³/h
Min. Reading = 0.0002 m³
Max. Reading = 999,999 m³
