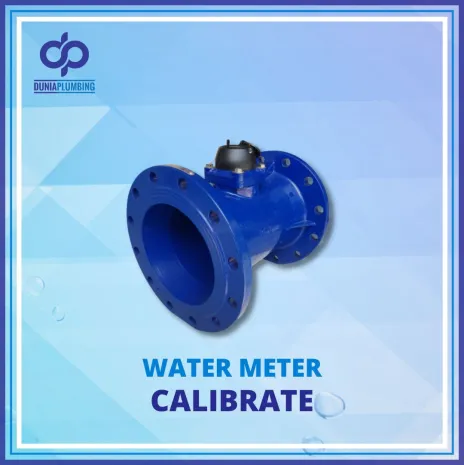

Brand = CALIBRATE
Type = LXXG (Air Limbah)
Size = 10 inch DN250
Length (L) = 450 mm
Height (H) = 450 mm
Connecting Flange
Outside Diameter (D1) = 395 mm (1.0MPa)
405 mm (1.6MPa)
Connecting Flange
Bolt Circle Diameter (D2) = 350 mm (1.0MPa)
355 mm (1.6MPa)
Connecting Flange
Connecting Bolts (n-M) = 12 – M20 (1.0MPa)
12 – M24 (1.6MPa)
Overload Flow (Q4) = 787.5 m³/h
Permanent Flow (Q3) = 630 m³/h
Q3/Q1 = 25
Transitional Flow (Q2) = 40.32 m³/h
Min. Flow (Q1) = 25.2 m³/h
Min. Reading = 0.002 m³
Max. Reading = 9,999,999 m³
