Water Meter

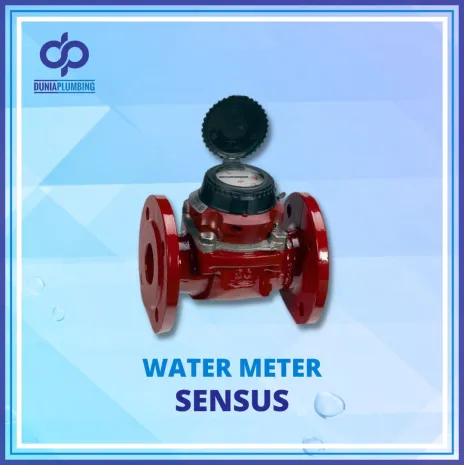

Sensus Hot Water Mater WP Dynamic
Tipe :
Water Meter
Berat :
- Kg
Detail Specification :
Specification
Type: WP-Dynamic
Nominal Diameter: 50
Temperature: 130 deg
Pressure Rate: 16
Overall Length: 200 mm
Pulse Values: 0.25/0.1 m3
Technical Data
Nominal Diameter: 50
Size of meter (acc. to PTB-A22): 15 Qn
Maximum peak flow once lifetime 24 h Qmax or 5 min. 1.2 x Qmax: 30 m3/h
Continuous flow (± 2%): 15 m3/h
Transitional flow (± 2%): 1.8 m3/h
Minimum flow (± 5%): 0.6 m3/h
Starting flow: 0.25 m3/h
Dimensions and Weights
Dimension of overall length; 200 mm
Dimension of height: 120 mm
Weight of meter: 7.7 kg
Weight of measuring element: 1.4 kg
Weight of body: 6.3 kg
Materials
Body: Cast Iron
Measuring element: Plastic
Rotor: Plastic
TYPE
Hot Water Mater WP Dynamic DN 50 PN 16 130 deg
Type: WP-Dynamic
Nominal Diameter: 50
Temperature: 130 deg
Pressure Rate: 16
Overall Length: 200 mm
Pulse Values: 0.25/0.1 m3
Technical Data
Nominal Diameter: 50
Size of meter (acc. to PTB-A22): 15 Qn
Maximum peak flow once lifetime 24 h Qmax or 5 min. 1.2 x Qmax: 30 m3/h
Continuous flow (± 2%): 15 m3/h
Transitional flow (± 2%): 1.8 m3/h
Minimum flow (± 5%): 0.6 m3/h
Starting flow: 0.25 m3/h
Dimensions and Weights
Dimension of overall length; 200 mm
Dimension of height: 120 mm
Weight of meter: 7.7 kg
Weight of measuring element: 1.4 kg
Weight of body: 6.3 kg
Materials
Body: Cast Iron
Measuring element: Plastic
Rotor: Plastic
TYPE
Hot Water Mater WP Dynamic DN 50 PN 16 130 deg
